What Is an Aircraft Engine Borescope Inspection?

What Is an Aircraft Engine Borescope Inspection?

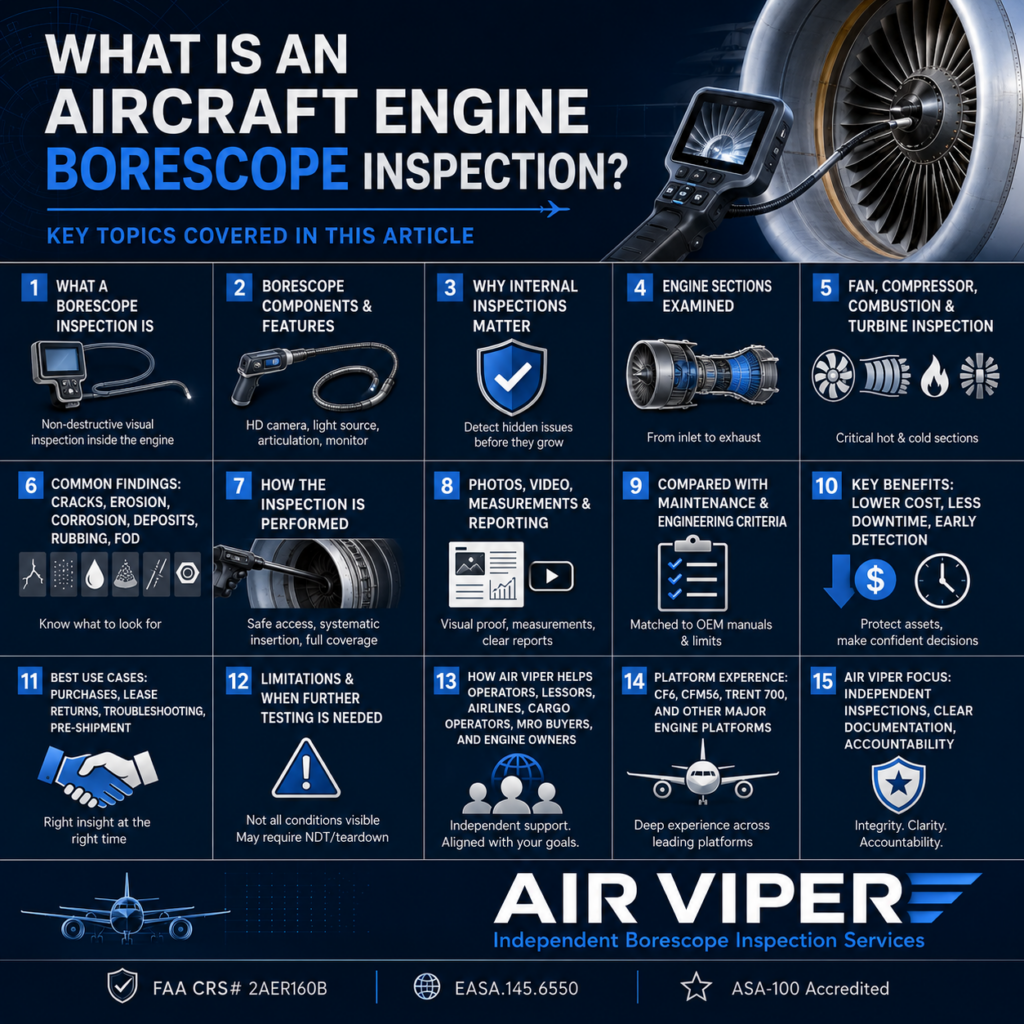

Key Topics Covered in This Article

Aircraft engines contain thousands of components operating under extreme heat, pressure, vibration, and rotational force. Many of the most important parts are located deep inside the engine, where they cannot be evaluated through a normal external inspection.

An engine may appear clean, properly maintained, and ready for service from the outside while still containing internal damage, wear, corrosion, deposits, cracking, erosion, or foreign-object damage. Identifying those conditions often requires a specialized inspection method that allows qualified personnel to look inside the engine without completely disassembling it.

That method is known as an aircraft engine borescope inspection.

A borescope inspection provides a detailed visual examination of accessible internal engine areas. It can help operators, lessors, buyers, sellers, MRO organizations, and engine owners understand the visible condition of major gas-path components before making maintenance, operational, or financial decisions.

What Is a Borescope?

A borescope is a specialized visual inspection instrument designed to examine internal areas that cannot be viewed directly.

Modern aviation borescopes commonly consist of a narrow, flexible insertion tube equipped with:

The probe is inserted through designated access or inspection ports located around the engine. The inspector then carefully maneuvers the articulating tip to examine internal components from different angles.

Images from the camera appear on a digital screen in real time. This allows the inspector to look for visible signs of damage, deterioration, deposits, contact, overheating, or other abnormalities.

The process is commonly called a borescope inspection, BSI, or remote visual inspection.

Unlike a basic flashlight-and-mirror examination, a modern video borescope can capture detailed photographs and recordings that become part of the permanent inspection record. These images can later be reviewed by maintenance personnel, engineering departments, buyers, lessors, manufacturers, insurers, or other stakeholders.

Why Aircraft Engines Need Internal Visual Inspections

A turbine engine operates in one of the most demanding mechanical environments in aviation.

Air enters through the fan or compressor section, where it is compressed to a much higher pressure. Fuel is then added and burned in the combustion section. The resulting hot gases move through the turbine stages, producing the energy needed to drive the compressor and generate thrust.

Throughout this process, engine components are exposed to:

Many forms of engine distress develop internally and cannot be seen during a walk-around or exterior inspection.

A borescope allows qualified personnel to inspect accessible areas without removing the engine from the aircraft or opening it to the same extent required during a shop visit.

This can provide valuable information while avoiding unnecessary disassembly, downtime, and expense.

Which Engine Areas Can Be Inspected?

The exact scope of a borescope inspection depends on the engine platform, the available inspection ports, the purpose of the inspection, and the instructions contained in the applicable maintenance documentation.

A typical aircraft engine borescope inspection may include portions of the following areas.

Fan Section

The fan is the first major rotating assembly visible at the front of many turbofan engines. Some fan-blade conditions can be detected externally, but a closer inspection may be needed to document blade surfaces, roots, tips, platforms, or areas that are difficult to view from the inlet.

Inspectors may look for:

The condition of the fan can provide useful information about the engine’s operational history and exposure to foreign materials.

Low-Pressure Compressor

The low-pressure compressor contains multiple stages of rotating blades and stationary vanes. It helps begin the process of compressing incoming air before it reaches the high-pressure section.

A borescope inspection may reveal:

The inspector may need to rotate the engine slowly to examine all accessible blades within a stage.

High-Pressure Compressor

The high-pressure compressor operates at higher temperatures, pressures, and rotational speeds than the earlier compressor stages. Damage or deterioration in this area can affect engine efficiency, airflow, stability, and performance.

Possible findings include:

Because many high-pressure compressor stages are located deep inside the engine, borescope access is essential for visual assessment.

Combustion Section

The combustion section mixes compressed air with fuel and burns the mixture to produce high-energy gas.

This area operates under extreme temperatures and repeated thermal cycling. Inspectors may look for visible evidence of:

Some discoloration and surface change may be expected during normal operation. The inspector must distinguish ordinary service-related appearance from conditions that may require additional evaluation.

High-Pressure Turbine

The high-pressure turbine extracts energy from the combustion gases and uses it to drive the high-pressure compressor.

Its blades, vanes, nozzles, and seals are exposed to very high temperatures and substantial mechanical loads.

A borescope examination may identify:

Findings in the high-pressure turbine can have major operational and financial implications because turbine components are highly engineered and expensive to repair or replace.

Low-Pressure Turbine

The low-pressure turbine drives the fan and low-pressure compressor system on many turbofan engines.

Inspectors may examine accessible stages for:

Although turbine damage may result from normal wear, overheating, debris, or mechanical events, a visual finding must be documented accurately before its significance can be assessed.

Turbine Nozzles and Vanes

Nozzles and vanes direct the flow of hot gases through the turbine section. Their geometry and condition are critical to engine efficiency and performance.

A borescope inspection may identify:

These components are stationary, but they operate in a demanding thermal environment and may experience significant deterioration over time.

Blades, Seals, Cases, and Gas-Path Components

A borescope may also provide access to other internal components, including:

The specific components examined depend on access, engine design, and the inspection objective.

How Is a Borescope Inspection Performed?

The inspection process begins with preparation.

The inspector reviews the engine model, serial information, maintenance requirements, inspection objectives, and available technical documentation. The engine must also be positioned and prepared safely before any access covers or plugs are removed.

The general process may include the following steps.

Confirming the Inspection Scope

The inspector determines why the inspection is being conducted.

The scope may involve:

The purpose of the inspection influences which areas receive the most attention and how the findings are documented.

Accessing the Engine

The appropriate borescope ports are identified and opened according to the maintenance instructions.

The probe is inserted carefully to avoid damaging the borescope or internal engine components. Correct probe handling is essential because forcing or scraping the instrument against engine parts can cause equipment damage or introduce unnecessary risk.

Examining Internal Components

The inspector maneuvers the probe and articulating tip to view the required areas.

The engine may be manually rotated so individual blades can be examined. Depending on the inspection requirements, the inspector may need to document every accessible blade or focus on particular stages and areas of concern.

Lighting, focus, viewing angle, orientation, and image stability all affect the quality of the inspection.

Recording Findings

Visible findings are photographed or recorded on video.

Good documentation should identify:

Clear documentation is especially important when the inspection supports a transaction, lease event, insurance matter, or dispute.

Evaluating the Findings

A visible indication does not automatically mean the engine is unserviceable.

Findings must be compared with the applicable maintenance manual, inspection criteria, engineering instructions, or manufacturer guidance.

The inspector documents what is visible. Depending on the condition, additional evaluation may be required from engineering personnel, the engine manufacturer, or another authorized technical authority.

What Types of Damage Can a Borescope Detect?

A borescope is primarily a visual inspection tool. It is especially useful for detecting visible conditions such as:

The importance of a finding depends on its size, location, shape, depth, orientation, and relationship to published limits.

A small nick near a critical blade area may require more attention than a larger cosmetic mark in a less sensitive location. This is why experience and accurate documentation are essential.

What Are the Main Advantages of Borescope Inspections?

The primary advantage of a borescope inspection is the ability to examine important internal engine components without completely disassembling the engine.

This offers several practical benefits.

Reduced Downtime

An on-wing or in-place borescope inspection may be completed much faster than removing and disassembling an engine.

This can help operators obtain useful information without unnecessarily disrupting aircraft availability.

Lower Inspection Costs

Complete disassembly can require substantial labor, tooling, transportation, and facility resources.

A borescope inspection provides a less invasive way to evaluate accessible areas and determine whether further work may be justified.

Early Problem Detection

Visible distress can sometimes be identified before it leads to a more serious event.

Early detection may give an operator time to monitor a condition, obtain engineering guidance, schedule maintenance, or prevent additional damage.

Better Transaction Decisions

Buyers, sellers, lessors, and MRO organizations can use borescope findings to understand engine condition before completing a transaction or accepting responsibility for an asset.

Improved Documentation

Photos, videos, measurements, and written findings create a condition record that can be reviewed later.

This can be valuable when questions arise about when damage occurred or how an engine was represented.

When Are Borescope Inspections Most Valuable?

Borescope inspections are used in many aviation situations.

They may be especially valuable during:

In commercial transactions, an inspection performed before an engine moves can help establish a clear record of its visible internal condition.

The Limitations of Borescope Inspections

Although borescopes are powerful inspection tools, they do not reveal every possible condition.

The inspection is limited to areas that can be accessed and viewed. Some components may be hidden behind other structures. Subsurface cracks, internal material changes, or defects located outside the camera’s viewing area may not be detected.

A borescope inspection may also be affected by:

When a concerning indication is discovered, additional inspection methods may be required.

These may include:

A borescope inspection should therefore be viewed as an important condition-assessment tool, not a guarantee that every possible engine defect has been identified.

How Air Viper Can Help

Air Viper, LLC provides independent aircraft engine borescope inspection services for lessors, airlines, cargo operators, MRO buyers, engine owners, and other aviation stakeholders.

Air Viper helps clients examine accessible internal engine areas, document visible findings, and create a clear record before an engine is purchased, sold, shipped, transferred, returned from lease, or installed.

The company’s inspection approach emphasizes:

Air Viper supports inspections involving CF6, CFM56, Trent 700, and other major engine platforms.

With FAA Certified Repair Station No. 2AER160B, EASA.145.6550, ASA-100 accreditation, and more than 30 years of aviation maintenance experience, Air Viper brings technical knowledge and transaction-focused support to the borescope inspection process.

Protecting Aviation Assets Through Better Visibility

An aircraft engine borescope inspection gives aviation stakeholders something that external inspections and records alone cannot always provide: a direct view of accessible internal engine components.

By examining the fan, compressor, combustion, turbine, and other gas-path areas, qualified inspectors can identify visible evidence of damage, deterioration, contamination, overheating, and wear.

The resulting images, videos, and reports can support maintenance planning, troubleshooting, lease events, engine transactions, and pre-shipment verification.

For buyers, lessors, operators, and engine owners, the value of a borescope inspection is not simply that it looks inside the engine. Its value comes from creating clear, reliable evidence that can support a confident decision.

Air Viper helps aviation companies obtain that evidence before an overlooked internal finding becomes a much more expensive problem.
